Rivet Sets For Sale: BMG .30 Cal.

1919a4/1917a1 Rivets: $29.00

This set will build most parts kits.

1919a4/1917a1 BHPB and Cam Rivets: $12.00

Belt Holding Pawl Bracket and Extractor Cam rivets.

FN30 Series Rivets: $42.00

Currently out of stock. Contact me before ordering.

Metric Rivets to complete the FN30 series BMGs.

If you have a FN37/38/39, contact me before ordering.

MAG58/M240 Rivets: $60.00

Metric Rivets to complete either the MAG 58 or M240 LMGs.

For more information, go to: Mag58/M240 Rivets: | 1919 A4 Forums

Rivets / Price List: .30 Cal.

.30 Cal BMG Rivet Sets Available

I have Rivets for the restoration of most classic Browning Machine Guns.

1919a4/1917a1

29.00

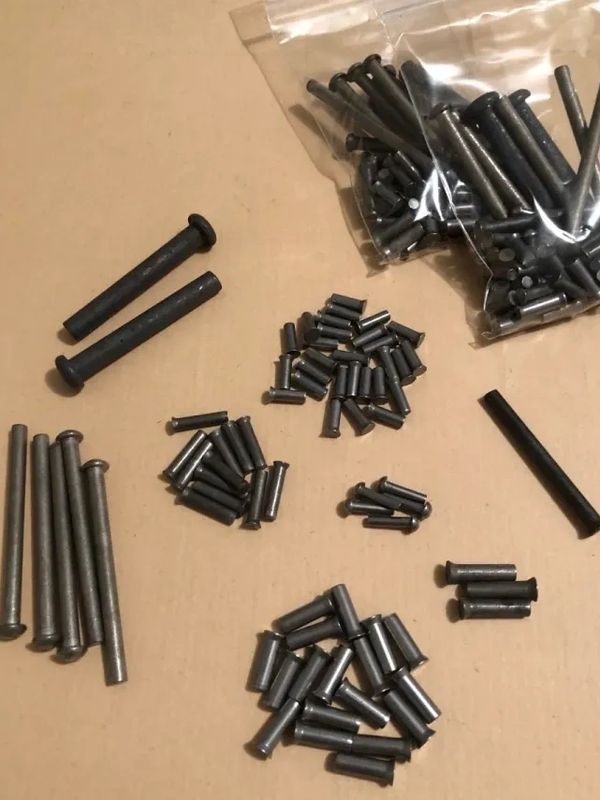

This set will build most current 1919a4 or 1917a1 parts kits. They have 60 degree heads like the originals. The set includes both a flat head and a round head countersunk rivet for the front of the Top plate, and extra Bottom plate and rear Top plate rivets. Extra length has been added to some of the rivets to compensate for de-mil. damage. The Cams and BHPB are still attached to the Left side plate in most parts kits. If yours aren't, they are available below

Colt Commercial/1928 Rivets

29.00

This set has 60 degree heads like the 1917a1/1919a4 sets, but includes the 1/8" round head rivet needed to attach the Bottom plate. The set includes both a flat head and a round head countersunk rivet for the front of the Top plate, and extra Bottom plate and rear Top plate rivets. If BHPB and Cam rivets are needed, they are available below.

1919a4/1917a1 Cam and BHPB Rivets.

12.00

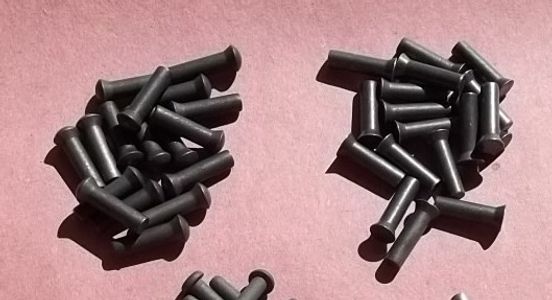

These are the 5/32" flat head rivets needed to attach the Extractor Cams and Belt Holding Pawl Bracket (BHPB). Set includes enough rivets to complete one weapon, with a few extra.

FN30 Series Rivets:

42.00

Currently out of stock. Con

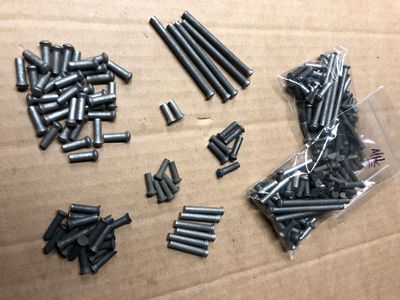

This set includes the Metric rivets required to rebuild an FN30 BMG. Factory weapons use several different lengths of 5mm rivets, which is not practicable for the low volume I produce. Provided are two 0.76” length rivets for the Cocking block, and 0.60” length rivets for use elsewhere. Some of these must be shortened prior to peening. The long rivets that pass through the Trunnion are 3mm, 4mm, and 5mm rods that must be peened on both ends. BHPB rivets are provided.

MAG/M240 Rivets:

60.00

I had been contacted many times in the past about Mag58/M240 rivets. Come to find out some guys at Weapons Guild were buying my FN30 sets for their 5mm rivets. After some research, and a good bit of caliper work by a Weapons Guild member, it looked like I could put together a quality set of rivets. The lengths are not correct, but they are easily shortened. Volume is too low to custom make all rivets at spec. length.

For more information, go to: Mag58/M240 Rivets: | 1919 A4 Forums

To order, send money to PayPal account: msgorham@burntcapital.com . To mail check or money order, contact us via email for address. Be sure to include a note telling me exactly what you want. MSG

Rivet Sets For Sale: BMG .50 Cal.

The all flat head rivet set: $47.00 (limited quantities)

Allows you to buck all the rivets like a 1917a1/1919a4.

The Mil-style set with Roundhead countersunk rivets for the Trunnion and Top plate: $47.00

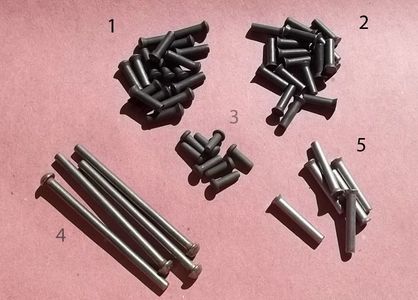

Includes a roundhead, countersunk rivet modeled on the Mil-spec. (1) for the Trunnion and Top plate, and a flat head rivet for the Bottom plate and Top plate (2).

Close-up of Receiver box rivets.

The roundhead, countersunk and flat head rivets for the Trunnion, Top plate and Bottom plate.

Rivets / Price List: .50 Cal.

.50 Cal BMG Rivet Sets Available

The new .50 BMG Rivet sets are ready to ship. There are three specific improvements. First, the long Trunnion rivet is now modeled on the Mil-spec. with a round head countersunk head to match the appearance of the factory built weapons. Next, the round head countersunk Trunnion and Top plate rivets are now cut to the Mil-spec. length, simplifying construction. As before, I offer three different sets:

The original, all flat head rivet set:

47.00

This set includes 3/16” flat head rivets (54) for attaching the Trunnion, Top plate and Bottom plate.

The Mil. Style Set:

47.00

This set includes 3/16" roundhead, countersunk rivets to attach the Trunnion and Top plate (36), and 3/16" flat head rivets for the Bottom plate (18). Assembled as such, the weapon will appear to be factory built both inside and out.

What's Included:

I can't get this format to accept a table, so for more information, please see:

https://www.1919a4.com/threads/new-50-bmg-rivet-sets-now-available.103535/#post-690801

To order, send money to PayPal account: msgorham@burntcapital.com . To mail check or money order, contact us via email for address. Be sure to include a note telling me exactly what you want. MSG
